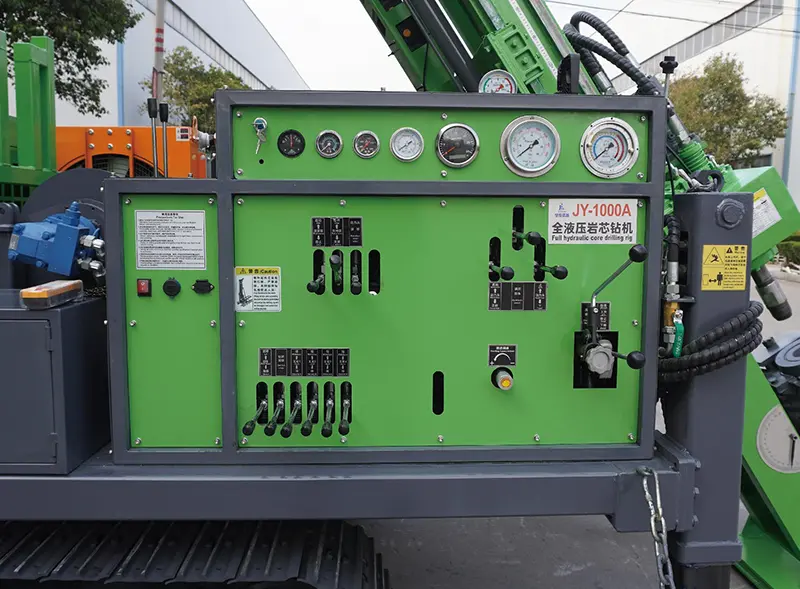

Full Hydraulic Core Drill Rig JY-1000A

Advanced Hydraulic Drilling Solution for Mineral Exploration & Engineering Applications

The JY-1000A Full Hydraulic Core Drill Rig is engineered by integrating cutting-edge global drilling technologies to deliver exceptional performance in demanding conditions. Designed for core sampling in mineral exploration, geological surveys, and specialized engineering projects, this rig combines robust hydraulic power with intelligent operational features.

Powered by axial piston pumps and bent-axis piston motors for maximum torque transfer efficiency

Eliminates mechanical transmission loss, enhancing energy utilization

2-gear mechanical transmission + stepless speed regulation

High Torque Output: 2,600 N.m – Ideal for hard rock formations

Oil cylinder + chain double-speed feed system ensures smooth, reliable penetration

Side-shift carriage allows lateral positioning flexibility

Hydraulic-controlled mast with sliding base

0-90° Adjustable Drilling Angle (45-90° standard) for multi-directional boring

Load-sensing system dynamically adjusts power output

20% higher fuel efficiency vs conventional rigs (industry benchmark)

• Rubber-tracked undercarriage for all-terrain mobility
• Operator controls rig movement from safe distances (up to 50m range)

Secures drill rods during rod handling operations

Ensures platform stability on slopes up to 15°

Enables rapid site positioning and height adjustment

✓ Solid mineral exploration core drilling
✓ Engineering geology investigations
✓ Shallow oil/gas & groundwater extraction
✓ Tunnel ventilation/drainage holes
✓ Dam grouting & foundation engineering
✓ Geotechnical anchor hole construction

JY-1000A Full Hydraulic Core Drill Rig – Technical Specifications

Category	Parameter	Value
Rig Model		JY-1000A
Drilling Capacity	BTW (m)	1,200
	NTW (m)	1,000
	HTW (m)	800
	NQ (m)	Not Applicable
Hydraulic System	Rated Pressure (MPa)	Main Pump: 115ml/r @ 32MPa Secondary Pump: 96ml/r @ 25MPa
	Cooling System	Air + Water
Engine	Model	Weichai 6-Cylinder
	Rated Power (kW)	129
	Rated Speed (rpm)	2,200
Powerhead	Max. Torque (N·m)	2,600
	Max. Speed (rpm)	1,400
	Feed Stroke (m)	1.8
	Lifting Force (kN)	360
	Feed Force (kN)	180
Wireline Winch	Line Capacity (m)	1,000
	Lifting Force (kN)	24
	Hoisting Speed (m/min)	110
	Wire Rope Diameter (mm)	6
Mast	Full Height (m)	6.5
	Drilling Angle (°)	45-90
	Lateral Shift Range (mm)	1,200
Clamp	Rod Sizes (mm)	Ø75 / Ø89 / Ø115
Crawler	Max. Gradeability (°)	25
	Travel Speed (km/h)	2-3
Transport Dimensions	L×W×H (mm)	4,700 × 2,100 × 2,600
Weight		7 tonnes (15,400 lbs)
