Engineered by integrating global advanced drilling technologies, the HD Series Full Hydraulic Core Drill Rig represents a leap forward in efficiency and versatility for demanding core sampling applications. Designed for solid mineral exploration, geological surveys, shallow oil/gas, groundwater assessment, and auxiliary engineering tasks (ventilation, drainage, grouting), this rig delivers exceptional power and precision.
Full Hydraulic Core Drill Rig Key Features & Benefits:
Advanced Hydraulic Drilling System:
- Pure Hydraulic Power: Entirely hydraulically driven for superior control, reliability, and reduced mechanical wear.
- High-Efficiency Drive: Features axial piston pumps and robust bent-axis piston motors for optimal power transmission.
- Load-Sensing Hydraulics: Intelligently matches power output to drilling demands, maximizing fuel efficiency and performance.
Superior Drilling Performance
- High Torque Output: Achieves up to 3500 N.m of rotational torque for tackling challenging formations.
- Precise Speed Control: Combines a 2-speed gearbox with stepless speed regulation for optimal RPM settings in any condition.
- Floating Spindle & 3m Rods: Floating spindle design minimizes stress and accommodates standard 3-meter drill rods.
- Wide Angle Range: Capable of drilling holes from 45° to 90° for versatile project requirements.
Enhanced Stability & Positioning
- Hydraulic Leveling Jacks: Ensure rapid and stable setup on uneven terrain.
- Telescopic Mast: Provides flexible working height adjustment.
- Integrated Mast Sliding: The entire mast smoothly slides via hydraulic cylinders for precise hole positioning.
- Head Side-Shift Mechanism: Allows lateral adjustment of the power head for accurate hole placement without moving the base machine.
Optimized Feed & Rod Handling
- Reliable Feed System: Utilizes a smooth and robust oil cylinder + chain double-speed feed mechanism.
- Hydraulic Rod Vise: Securely grips rods during breakout/makeup, enhancing safety and operational speed.
Mobility & Safety
Wireless Remote Crawler: Features a rugged crawler chassis controlled via wireless remote from a safe distance. Navigates diverse terrains easily and minimizes operator risk during positioning or sudden hazards.
Why Choose the JY Series?
Built for professionals who demand power, precision, and safety, the JY Series Full Hydraulic Core Drill Rig combines cutting-edge hydraulic technology with practical, user-focused design. Its robust construction, versatile positioning features, and remote-controlled mobility make it the ideal solution for efficient and safe drilling operations across diverse exploration and engineering sites.
Technical Specifications Table
| Parameter Category | Specification | Value |
|---|---|---|

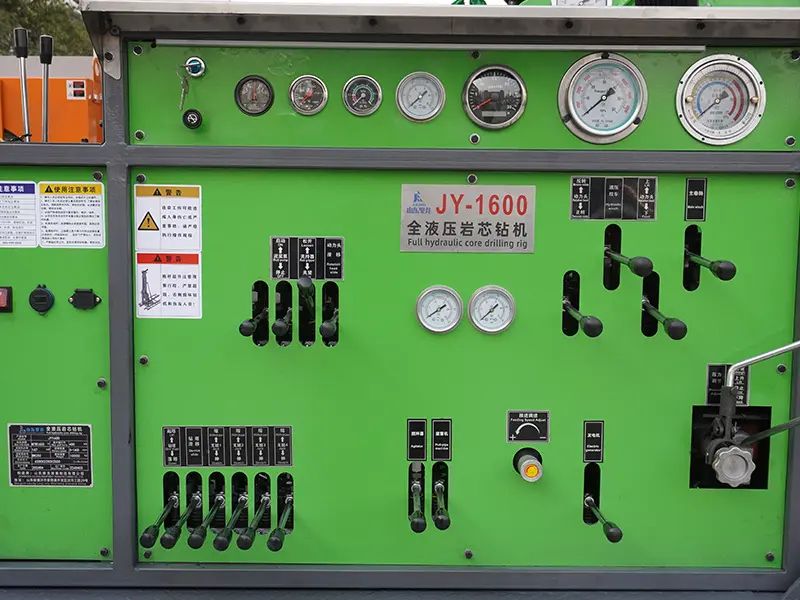

| Rig Model | JY-1600 | |
| Drilling Capacity | BTW Depth (m) | 1,800 |
| NTW Depth (m) | 1,600 | |
| HTW Depth (m) | 1,400 | |
| Hydraulic System | Main Pump | 145ml/r @ 32MPa |
| Auxiliary Pump | 96ml/r @ 25MPa | |
| Cooling | Air + Water | |
| Engine (Optional) | Model | Weichai 6-Cylinder |
| Power | 140 kW | |
| Speed | 2,000 rpm | |
| Powerhead | Max. Torque | 4,000 N·m |
| Max. Speed | 1,400 rpm | |
| Feed Stroke | 3.5 m | |
| Pullback Force | 460 kN | |
| Feed Force | 230 kN | |
| Wireline Winch | Line Capacity | 1,600 m |
| Line Pull | 30 kN | |
| Hoist Speed | 110 m/min | |
| Rope Diameter | Ø6 mm | |
| Mast | Working Height | 8.1 m |
| Drilling Angle | 45-90° | |
| Lateral Shift | 1,200 mm | |
| Transport | Dimensions (L×W×H) | 5,900 × 2,100 × 2,400 mm |
| Weight | 10 tonnes |
