Portable Full Hydraulic Core Drill Rig JY600Q

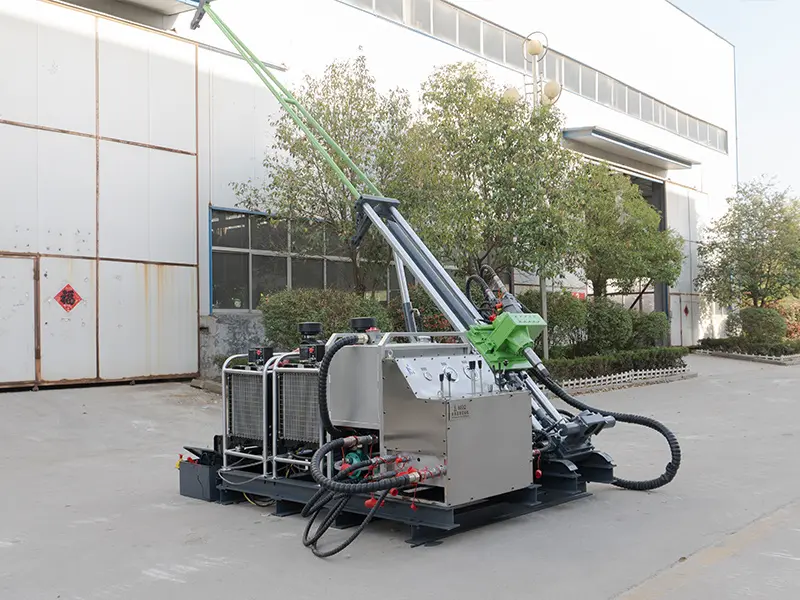

Portable Core Drill Rig JY600Q is engineered for medium-depth wireline coring operations. Featuring a lightweight modular design, it can be manually transported by field crews.

Portable Core Drill Rig Key Specifications & Features:

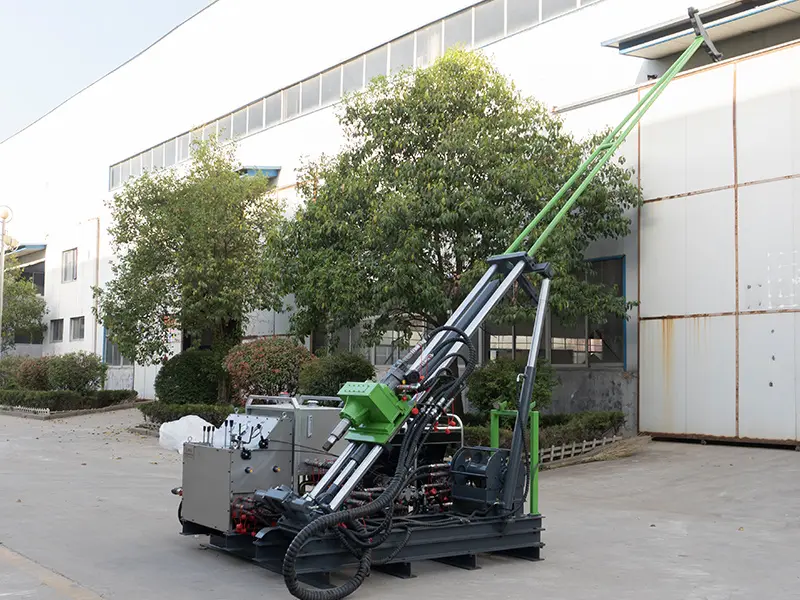

Dual-Engine Hydraulic Drive: Powered by two Kubota diesel engines for reliable all-hydraulic operation.
High Torque & Precision Control: Delivers up to 1,200 N.m maximum torque with a 2-speed gearbox + stepless speed regulation.
Advanced Hydraulic System: Driven by axial piston pumps and high-efficiency bent-axis piston motors.
Versatile Drilling Angles: Equipped with a power head lateral shift mechanism and a hydraulic cylinder-operated mast enabling full sliding adjustment for 45°–90° angled drilling.

JY-600Q Technical Specifications

Parameter Category	Specification Item	Value / Description
Drill Rig Model		JY-600Q

Drilling Capacity (m)	BTW (m)	650
	NTW (m)	600
	HTW (m)	400
	NQ (m)	/

Hydraulic System	Rated Pressure (MPa)	31.5 + 31.5 + 20 + 20 (Multi-circuit)
	Cooling System	Water Cooling

Engine Parameters	Model	Kubota 4-Cylinder Diesel (x2 units)
	Rated Power (kW)	49.2 * 2 (Total: 98.4 kW)
	Rated Speed (r/min)	2700

Power Head Parameters	Max. Torque (N.m)	1200
	Max. Speed (r/min)	1100
	Feed Stroke (mm)	1800
	Clearance Hole Diameter (mm)	95
	Pullback Force (kN)	100
	Feed Force (kN)	75

Wireline Winch Params	Rope Capacity (m)	800
	Lifting Force (kN)	15
	Lifting Speed (m/min)	110
	Wire Rope Diameter (mm)	6

Mast Parameters	Full Height (m)	5.8
	Drilling Angle Range (°)	45 – 90
	Lateral Shift Travel (mm)	/

Rod Clamp Parameters	Max. Rod Diameter (mm)	130 (Clearance Hole)

Crawler Parameters	Max. Gradeability (°)	30 (Optional)
(Optional Configuration)	Max. Travel Speed (km/h)	2 (Optional)
	Load Capacity (t)	5 (Optional)

Transport Dimensions	L × W × H (mm)	(Recommend adding data)
Total Weight		(Recommend adding data)
