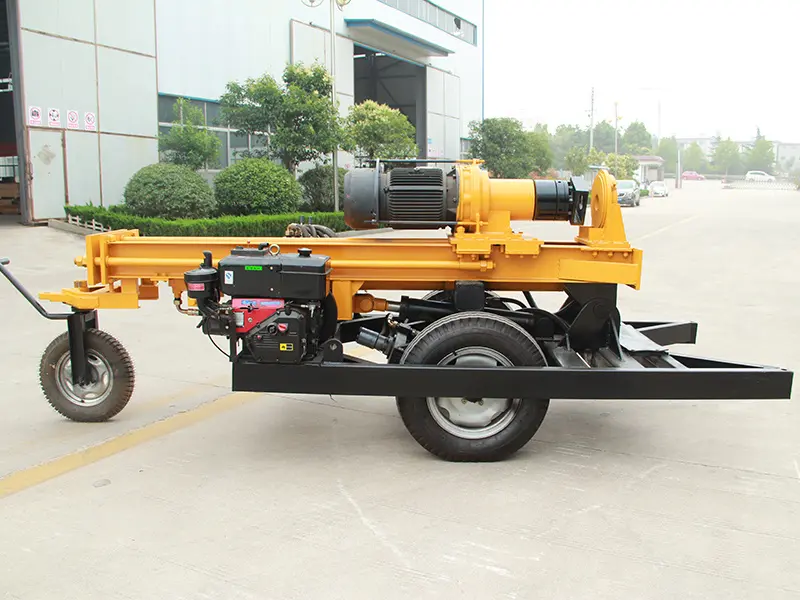

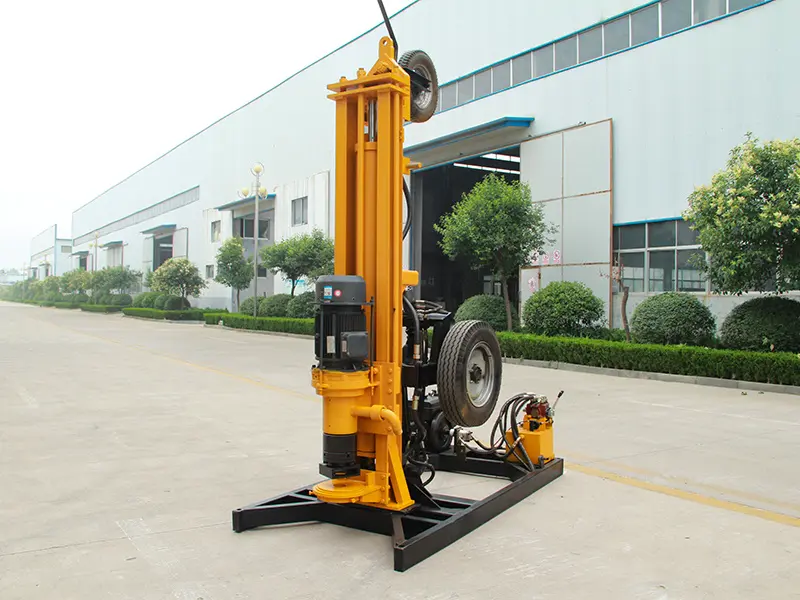

Portable Pneumatic Water Well Drill Rig Primary Applications:
Specifically engineered for drilling water wells, agricultural irrigation wells, geothermal heat pump boreholes, and other borehole applications. Exceptionally effective for water extraction projects in mountainous terrain and rocky formations.
Portable water well drill Key Features:
- High Mobility & Adaptability: Easily transported and deployed across diverse geographical conditions.
- Simple & Efficient Operation: Ideal for water well drilling and geothermal loop installations.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Hole Diameter | Φ90 – Φ273 mm |
| Max. Drilling Depth | 200 m |
| Travel Speed | 2 km/h |
| Rock Hardness | f = 6 – 20 (Medium-hard to very hard rock) |
| Operating Air Pressure | 1.2 – 3.0 MPa |
| Air Consumption | 11 – 35 m³/min |
| Mast Feed Stroke | 1800 mm |
| Weight | 630 kg (≈1,389 lbs) |
